• IoT / Industry 4.0 Solutions

    Don’t be left behind. It’s now easier than ever before to connect all of your machinery together so that production data can be gathered, visualized and analyzed in real-time to help you improve your process. Integrelec can partner with you to make this a reality.

What is it?

The internet of things (IoT) refers to the trend of an increasingly large number of embedded devices that are connected to the internet in some way, for the purpose of autonomously gathering and sharing information (typically without human involvement) to help with a particular task, or learn from a process.

The industrial internet of things (IIoT) refers to the extension and use of the internet of things (IoT) in industrial sectors and applications, to assist with running of plant and equipment by allowing decision making based on real-time information. IIoT is the collection of technologies that is driving Industry 4.0.

Industry 4.0 (also sometimes referred to as smart manufacturing) refers to a new phase in the Industrial Revolution that focuses on marrying physical production and operations with smart digital technology, machine learning, and big data to create a more holistic and better connected ecosystem for companies.

But with such a broad definition and even broader application, what does this mean for the average processing facility in Australia? The fact is that Industry 4.0 driven by IIoT technologies is not a single thing. It means something different to each industry and indeed each plant.  For the principles to be useful they must be uniquely applied to solve specific problems.

What types of problems can it help to solve?

1. Access To Real-time information

Typically, industrial data collection has been done by connecting sensors to PLCs, and those PLCs to a historian program running on a computer onsite.  This can be very effective, but suffers from a few key problems:

  • High cost of initial deployment with purchase of computer hardware and historian software,
  • Resources required to support and maintain the computer hardware,
  • Restrictions with accessing the data. You probably need to be onsite to access it, or use remote-desktop access programs to “log-in”.
  • Potential for data loss, if the onsite computer fails.

The IIoT approach to this is to move the data into shared/managed servers in the “cloud” as early in the chain as practical. The information can then theoretically be accessed from anywhere via a web browser, and the costing model moves towards a monthly subscription with lower up-front outlays.

The main up-front cost is the link between your plant PLCs and the internet, which is done by a device called an “Edge Controller”. These can take various forms from a piece of software running on an existing computer, to a dedicated piece of hardware which looks similar to a PLC. We recommend the latter because it doesn’t need onsite resources to support and is not affected by things like Operating System updates. Edge controllers typically have two isolated Ethernet connections. One links to your factory network, and the other to an internet connection (NBN, 4G etc). This keeps the factory network separate from the general internet with it’s host of security threats.  It literally sits on the “edge” between your factory network and the internet.

From the Edge controller, data is passed into the cloud to a server which can record, aggregate, analyse and display it.

Integrelec has experience in installing Edge Controllers, as well as setting up web-based dashboards to display the resulting data. Please call us today to discuss how this could benefit your operations.

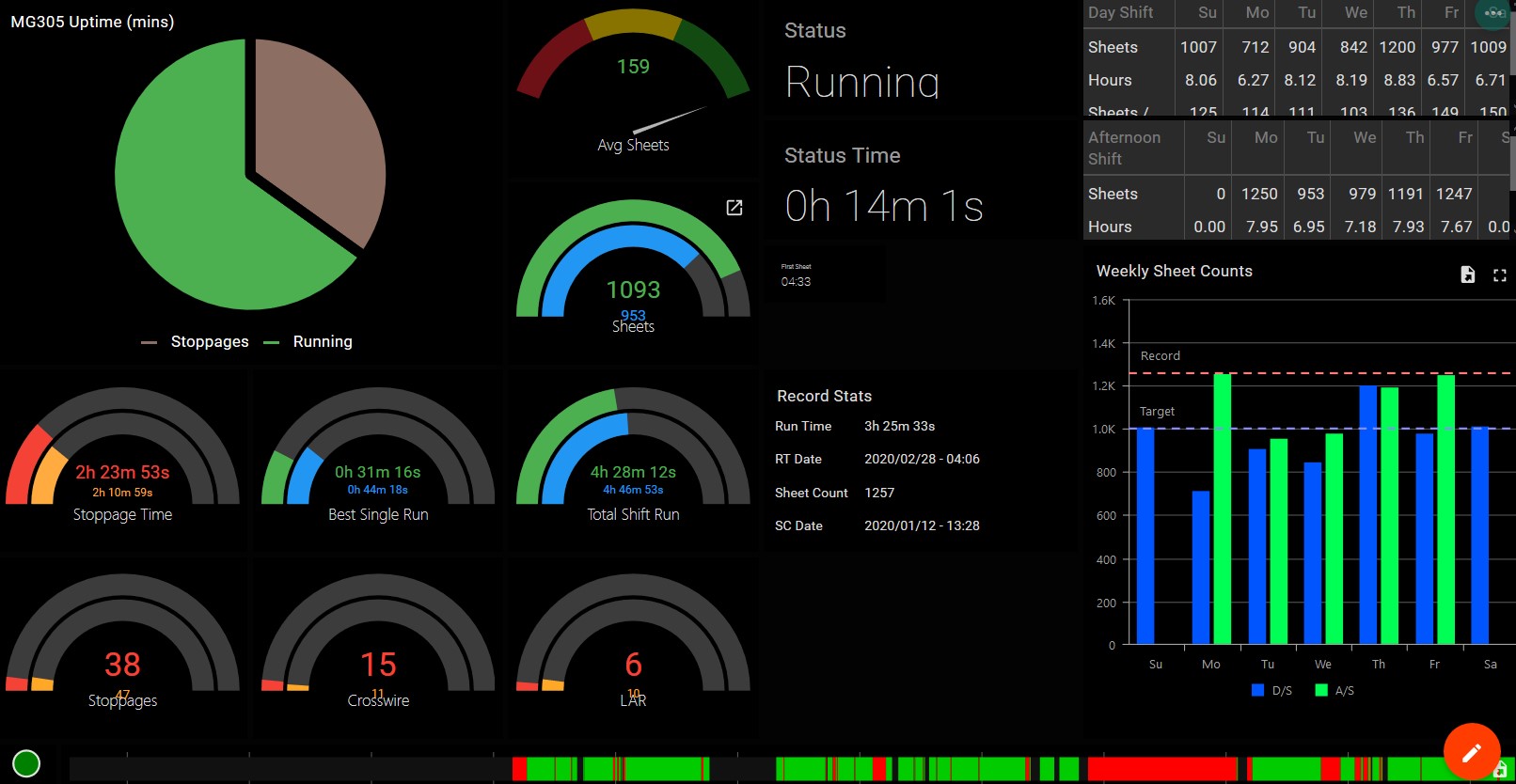

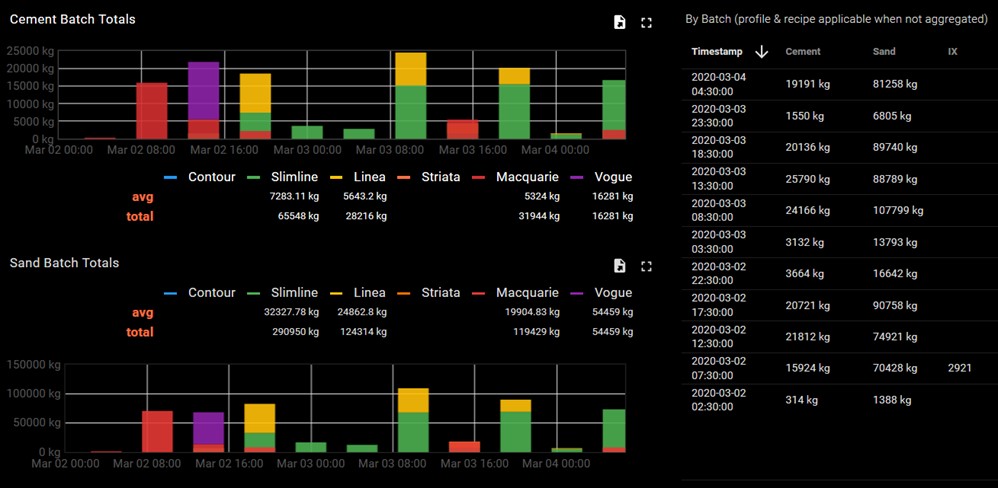

Examples:
